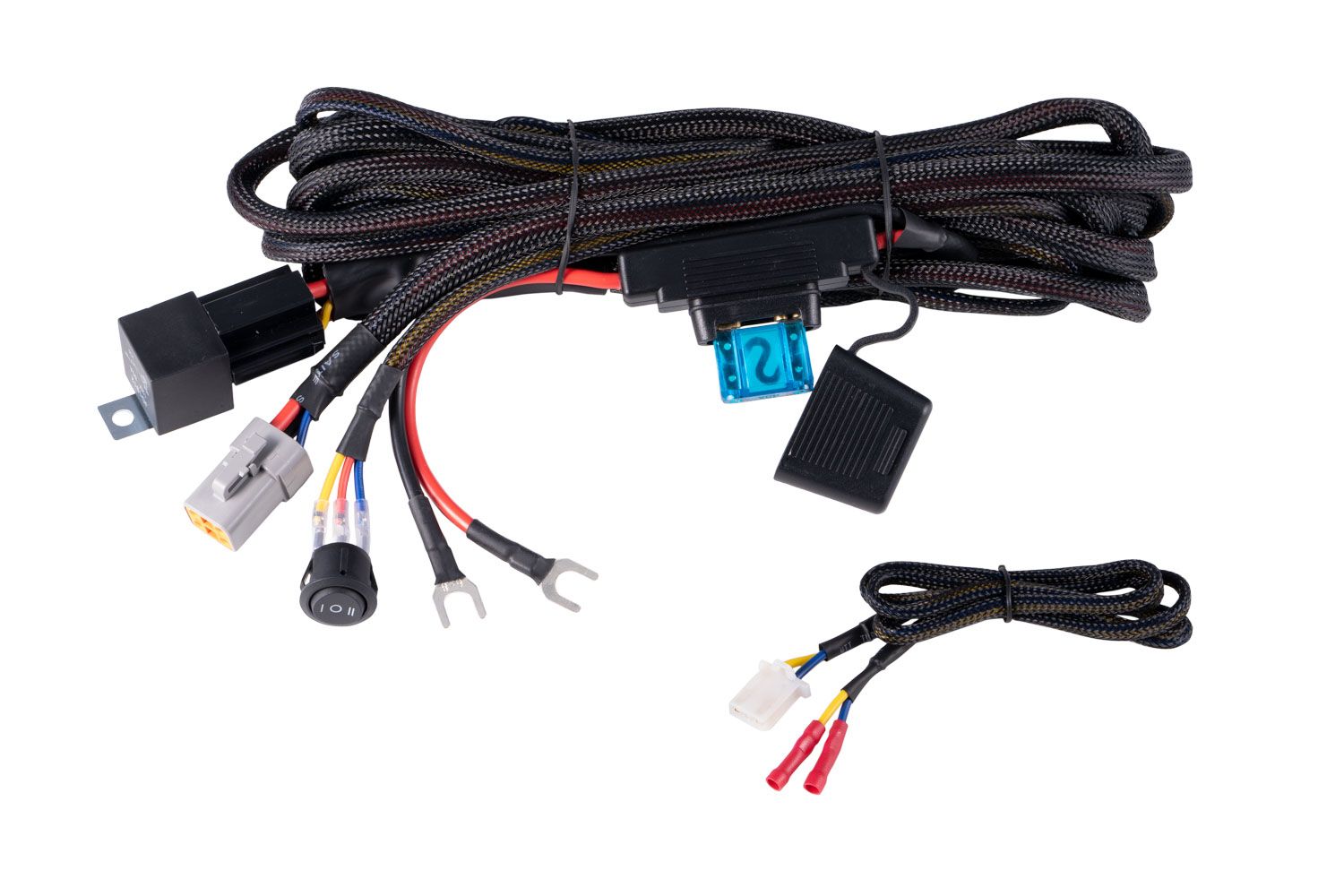

Heavy Duty Single Output Light Bar Wiring Harness Diode Dynamics

Features

• Powers Diode Dynamics Stage Series light bars and LED pods.

• Connects directly to the battery to power your light.

• High capacity 14AWG wiring.

• Deutsch DT output connector.

• Black wire sheathing to protect cables.

• 30A, waterproof fuse and 60 amp, 12V relay to safeguard the electrical systems in your light.

Overview

Stage Series. This harness is intended to be used with our Stage Series light bars and pods without backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a two-way toggle switch, and uses high capacity 14AWG wiring and Deutsch DT connectors for simple plug-and-play installation.
